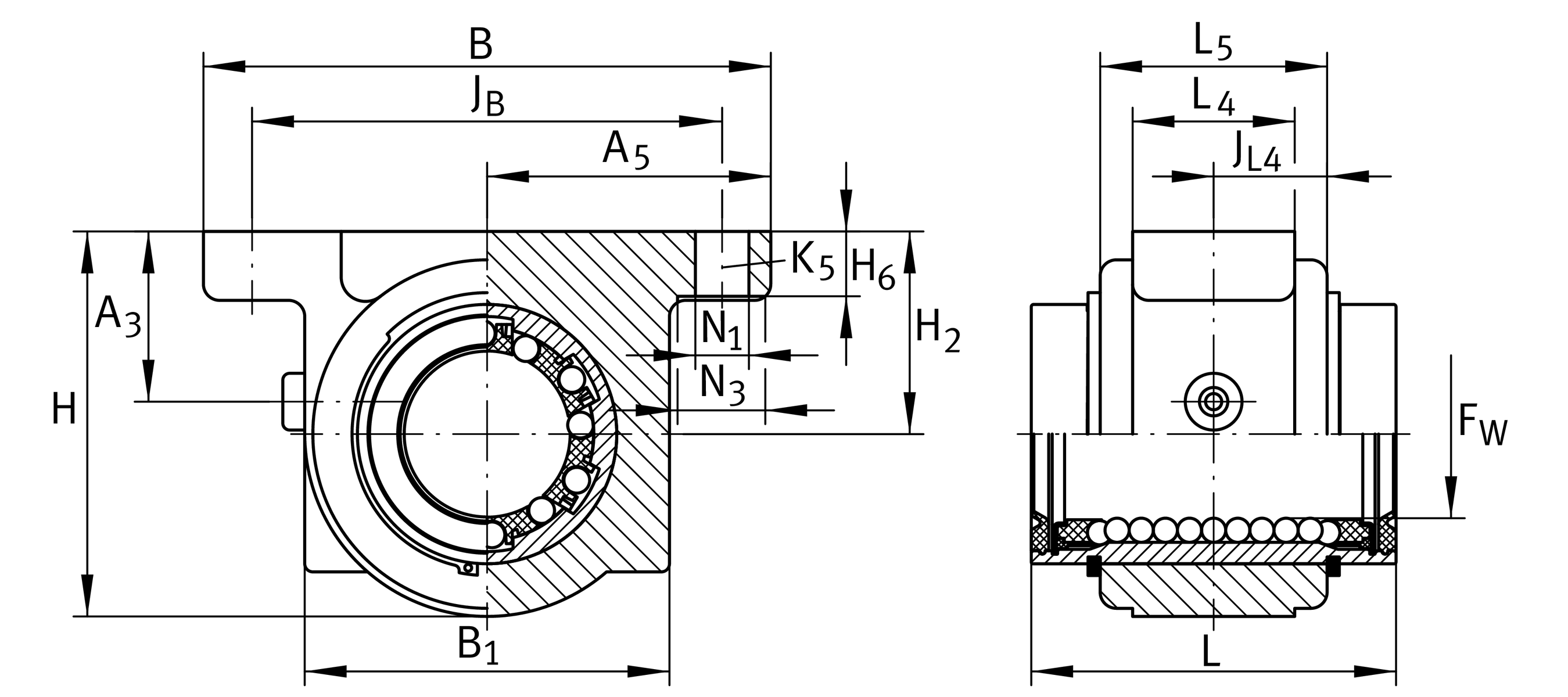

技術圖紙
您當前的產品型號
Size code
12
Seal
PP
再潤滑特性
AS
主要尺寸和性能數據
FW
12 mm
Diameter of ball complement
Tol FW
+0,008
Upper tolerance
Tol FW
0
Lower tolerance
H
35.8 mm
heigth
L
32 mm
length
Tol L
h12
tolerance
B
52 mm
width
C
540 N
load capacity dyn. 1
C0
385 N
load capacity stat. 1
≈m
0.1 kg
重量
安裝尺寸
JB
42 mm
Tol JB
+0,15
Upper tolerance
Tol JB
-0,15
Lower tolerance
B1
31.6 mm
Mounting Dimension
A5
26 mm
Mounting Dimension
Tol A5
+0,02
Upper tolerance
Tol A5
-0,02
Lower tolerance
L4
12 mm
Distance
L5
20 mm
Distance
J L4
10 mm
Distance
H2
20 mm
Center height
Tol H2
+0,015
Upper tolerance
Tol H2
-0,015
Lower tolerance
A3
15 mm
mounting dimension
H6
6 mm
Mounting Dimension
N1
5.5 mm
N3
10 mm
Mounting Dimension
K5
M5
2
K8
NIPA1
Lubrication nipple
5
Ball rows
