產品目錄 Products

AXW17

推力滾針軸承

推力滾針軸承, 單向, AXK 帶推力軸承墊圈

產品目錄

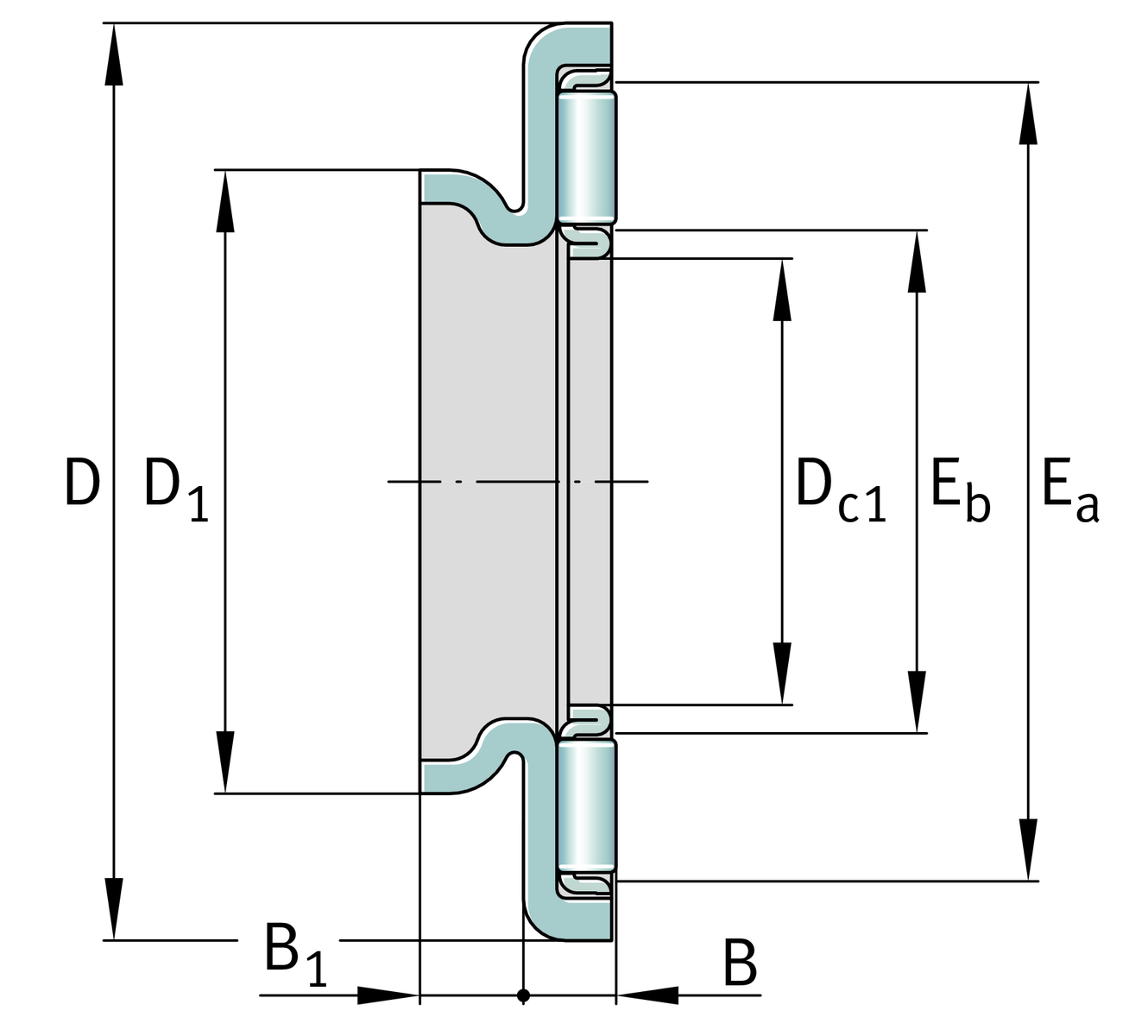

技術圖紙

主要尺寸和性能數據

D_c1

17 mm

Bore diameter cage

33 mm

Outside diameter bearing washer

3.2 mm

Height bearing

B₁

3.5 mm

Height centering collar

D₁

23 mm

Outside diameter centering collar

E_a

29 mm

Raceway dimension

E_b

19 mm

Raceway dimension

12,000 N

Basic dynamic load rating, axial

C_0a

39,500 N

Basic static load rating, axial

c_ua

4,000 N

Fatigue load limit, axial

n_G

12,300 1/min

Limiting speed

n_?r

5,800 1/min

Reference speed

≈m

11.54 g

重量

附加信息

AS1730

Axial bearing washer

HK1712

Drawn cup needle roller bearings for radial bearing arrangement

NK15/16

Needle roller bearings with out inner ring

NK15/20
